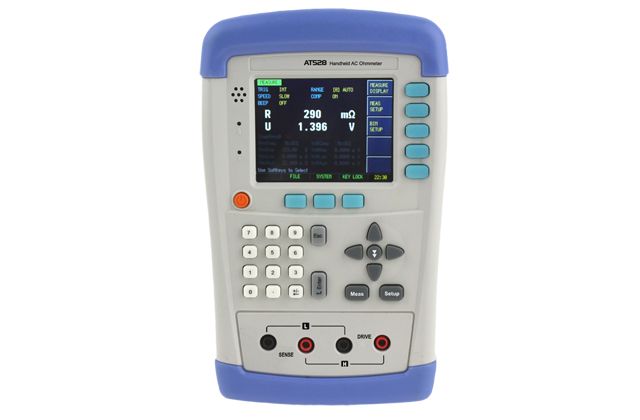

AT528

AC Resistance Tester, DC voltage

                          • Gorgeous dual-colure cast shell
                          • Battery and external power supply
                          • Battery capacity: continuously used for over 8 hours
                          • Double display: ΔABS/Δ%/Sorting Result
                          • Comparator Function: GD/NG VFD Show or HANDLER out
                          • Auto Zero-Adjust for each range
                          • Mini-USB interface,SCPI compatible command sets

 General Characteristics
 Parameter  AC resistance, DC voltage
 Accuracy  R: 0.5%±5dgt V: 0.2%±5dgt
 Range  R: 0.01mΩ~2.000kΩ V: 1mV～50V
 Speed  20 times/second, 10 times/second, 2 times/second
 Display Max  Resistance: 3200 Voltage: 5000
 Dimension  210.76mm*130.23mm*37.88mm
 Weight  650g
