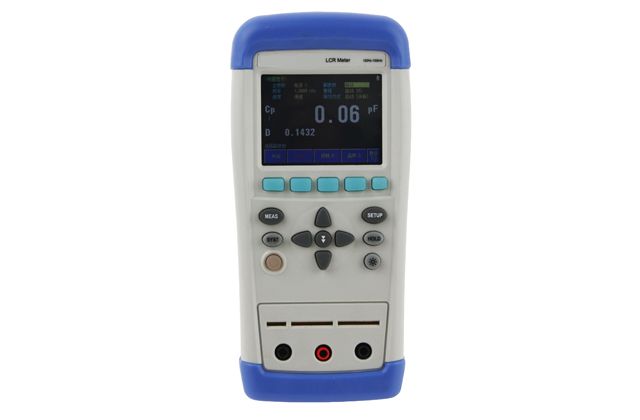

AT825

Handheld LCR Digital Electronic Bridge,Touch Screen

                          • True-color TFT liquid crystal display, keypad and touch screen double control
                          • High performance 32-bit ARM microprocessor
                          • Constant 100Ω source internal resistance
                          • The highest frequency of 10Khz
                          • 1Vrms measurement voltage level
                          • 0.2% accuracy
                          • USB communication
                          • Li-on battery supply power
 General Characteristics
 Main Parameters  L,C,R,Z
 Sub Parameters  D, Q, θr, θd, X,ESR
 Accuracy  0.2%
 Frequency  100Hz,120Hz,1kHz, 10kHz
 Speed  4 times/second，1.5 times/second
 Display Max  Principle Parameter: 49999 Sub Parameter：49999
 Battery Parameter  8.4V,Li-on,1400mAh rechargeable battery
 Dimension  90(Width)x190(Height)x31(Depth)
 Weight  400g
