VC60B+

VC60B+

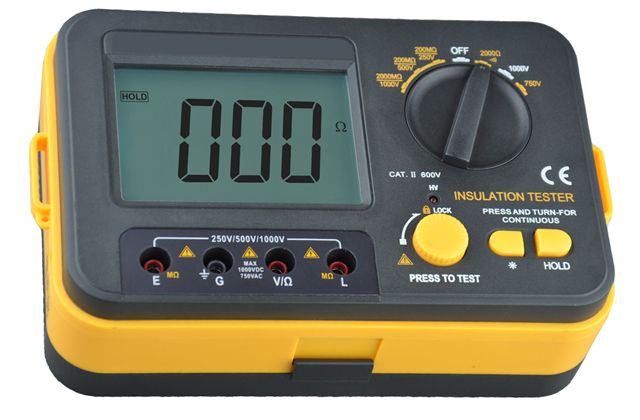

Insulation Tester,3 1/2 digits

                          • An accurate, reliable and easy-to-use insulation tester
                          • Large LCD display, easy to read
                          • Strong anti-magnetic and anti-jamming function
                          • Full function protection, anti high voltage circuit design
                          • Unit symbol display, easy to use
                          • High voltage and short circuit input alarm



 General Characteristics
 250V±10% Test Voltage  0~200MΩ; Accuracy:±(4.0%+2); Resolution:100kΩ
 500V±10% Test Voltage  0~200MΩ; Accuracy:±(4.0%+2); Resolution:100kΩ
 1000V±10% Test Voltage  0~2GΩ; Accuracy:±(4.0%+2); Resolution:1MΩ
 Resistance  0~2kΩ; Accuracy:±(1.0%+5); Resolution:1Ω
 DCV  0~1000V; Accuracy:±(1.0%+5); Resolution:1V
 ACV  0~750V; Accuracy:±(1.5%+5); Resolution:1V
 Continuity Alarm  Less than 30Ω±10Ω
 Low Battery Indication  Less than approx.7.5V
 Sampling Rate  3 times/Sec.
 Max.Display  1999
 Meter Size  176mm (L) x116mm (W) x62.5mm (D)
 Weight  580g (including battery)
